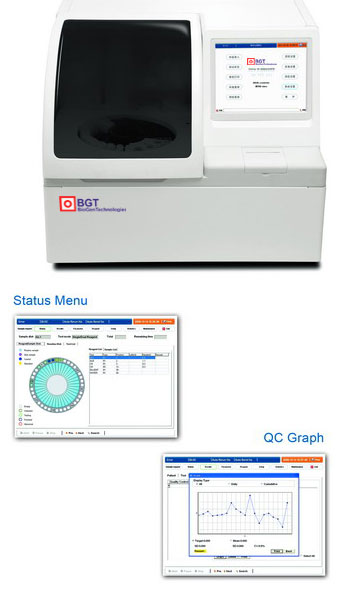

CliChem120

Automated Chemistry Analyzer

Features

• Automatic, Random Access
• up to 100 tests per hour
• Reagent pre-heating, liquid level detection
• Labor saving, simple programming and real walk-away operation
• Reagent open system, close system on request
• Micro-volume for sample and reagent
• User-friendly software, simplicity and flexibility for operation
• Multi-language software available

Technical Specifications

System Function

• Throughput: up to 100 tests per hour
• Contents of testing: Clinical chemistry, Immunoturbimetric
• Analytical modes: End-point, Two-point, Kinetic
• Programming: Open system with user defined programs
• Automatic, Random Access
• STAT sample priority

Sample Tray

• Sample position: 9 positions for samples
• Sample volume: 3 - 45µL, 0.5µL adjustable
• Any position for standard and quality control setting

Reagent Tray

• Reagent position: 26 positions for reagents
• Reagent volume
• R1: 180 - 450 µL, 1µL adjustable
• R2: 3 - 450 µL, 1µL adjustable

Reaction Tray

• Reaction positions: 90 cubettes, 10 cuvettes/strip
• Cuvette: Optical length 5mm
• Reaction volume: 180 - 500ul
• Reaction temperature: 37°C, fluctuation ±0.3°C

Probe

• Pre-heating for reagent
• Collision protection, Liquid level detection and Inventory checking
• Automatic inner and outer probe washing after every cycle, carry-over <0.1%

Print out

• Built-in Thermal printer, external printer optional

Measuring and Optic System

• Lamp: Halogen lamp
• Absorbance range: 0 - 3.500Abs
• Wavelengths: 8 wavelengths from 320 - 850 nm
• Resolution: 0.0001ABS

Working Conditions

• Power supply: 100 - 240 VAc 50/60 Hz
• Temperature: 10 - 35°C
• Humidity: 35 - 80%
• Water consumption: <3 L/hour
• Dimension L x W x H (mm): 630 x 480 x 510
• Net weight: 70 KG
