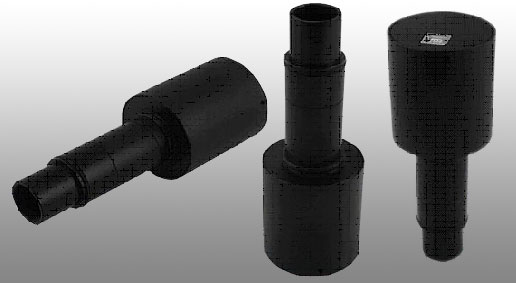

Introduction to Fluorescence Microscopy Digital Camera of DCE-PW140FL This high performance digital DCE-PW140FL system comprises advanced CCD and electronics technology. The system features extremely low noise (down to 4e-rms) and an outstanding quantum efficiency, which achieves a high spectral sensitivity in general and especially in the NIR. Exposure time modes (software selectable) range from 0.06ms-60ms(fast shutter) to 0.426s-582s ( long exposure) . A high speed transfer of the data to the PC through USB2.0. Its main characteristics are - super quantum efficiency up to 65%
- extremely low noise, down to 4e -rms
- 12bit dynamic range at the hardware level and 8 bit to the PC
- high resolution ( 1376 x 1040 pixels)
- shutter / exposure times from 0.06ms -582s
- binning ( horizontal & vertical,1X1,2X2,4X4)
- 10 frames per second at full camera resolution
- Direct Show and Twain drivers, free software ScopePhoto included
Spectral Sensitivity Characteristics (excludes lens characteristics and light source characteristics Areas of Application - laser induced fluorescence
- fluorescence microscopy
- electron microscopy
- Red and NIR fluorescence applications
- bioluminescence / chemoluminescence
- spectroscopy
- gel imaging
- ion imaging
- low light level imaging
- imaging of bio markers (e.g. green fluorescent protein, GFP)
- semiconductor quality control
DCE-PW140FL Specifications Specifications | Unit | Set point | Parameters | Resolution (hor x ver) | pixels | NA | 1376 x 1040 | Pixel Size ( hor x ver) | µm x um | NA | 6.45 x 6.45 | Sensor Format / Diagonal | inch/mm | NA | 2/ 3″ / 11.14 | Peak Quantum Efficiency | % | @500nm typical | 62 | Image Sensor | NA | NA | Sony ICX285AL | Dynamic Range | dB | @ gain low | 70.1 | Dynamic Range A/D | bit | | 12(8 bit to the PC) | Readout Noise | e-rms | @ gain high
@ gain low | 4-5
5-6 | Imaging Frequency, Frame Rate | fps | @ full frame
@ binning 2x2
@ binning 4x4 | 10
10
10 | Pixel Scan Rate | MHz | NA | 28 | Spectral Range | nm | NA | 350-1000(Without IR cut)
350-780 (with IR cut) | Exposure Time | s | NA | 0.06s-582s | Smear | % | NA | < 0.002 | Binning Horizontal | pixel | NA | 1,2,4 | Binning Vertical | pixel | NA | 1,2,4 | Region of Interest | pixel | NA | down to 32 x 32 | Extinction Ratio | NA | @1ms exposure time | 1 : 2000 | Non-linearity (differential) | % | full temperature range | < 1 | Uniformity Darkness DSNU[3] | count | @ 90% center zone | 1 | Uniformity Brightness | % | NA | 0.6 | Power Supply | NA | NA | USB port | Mechanical Dimensions | mm | NA | Anodized metal body of cylinder shape, Ф50mmX60mm(TDC seies)
Anodized metal body of cylinder shape, Ф50mmX140mm(MDC series) | weight | g | camera | ??? | Operating Temperature Range | oC | NA | -5..+40 | Operating Humidity Range | % | non condensing | 10..90 | Storage Temperature Range | oC | NA | -20..+70 | Optical Input | NA | NA | c-mount (TDC)
C mount with adaptor(for electric eye pieces) | Optical Input Window | NA | NA | fused silica | Data Interface | NA | NA | USB2.0 | Data transfer to PC | NA | NA | USB2.0 with direct show and Twain interface |
FEATURES & SPECIFICATIONS HardWare A Sony CCD Microscope Digital Camera (MDC) , with 1.4M pixel resolution, with high quality, black and white color(8bit) and easy USB2.0 PC interface Built-in reduction lens for possible largest field of view Fits all kinds of microscopes including biological, stereo, and metallurgical microscope with monocular, binocular, trinocular observation head Parfocal with all microscopes Calibrating kit for defining tolerances and obtaining meaningful measurements(optional)
Driver included DSHOW and TWAIN drivers, let you use others software like Amcap, ACDSee and PhotoShop or your own application to records live videos on your computer Compatible with Windows 2000/XP/2003/Vista /2008
Software ScopePhoto - Compatible with Windows 2000/XP/2003/Vista/2008
- User-friendly sophisticated software ScopePhoto & manual
- Shows live video on your computer screen and let you captures microscope images you want
- The captured image can be saved in the format your specified as listed in the left table
- Measures lengths, angles and areas across microscope images(A very powerful measurement functions)
- Edits microscope images on your computer in the same way as PhotoShop does
- Detailed user's instructions for easy installation, smooth operation, and possible software upgrade
ScopePhoto file format supported WindowBitmap(*.bmp,*.dib,*.rle) JPEG(*.jpg,*.jpeg,*.jpe,*.jif,*.jfif) Portable Network Graphics(*.png) Tag Image File Format(*.tif, *.tiff) Compuserve GIF (*.gif) Targa(*.tga) PhotoShop(*.psd) ICON(*.ico) Enhanced Window Metafile(*.emf) Window Metafile(*.wmf) JBIG(*.jbg) JPEG2000 Standard(*.jp2) JPEG2000 CodeStream(*.j2k) Wireless Bitmap(*.wbmp) Scope File Type(*.sft ) (to save the measurement results with the image together )
Warranty policy - Three-year warranty
- Free life-time software upgrade
- Unbeatable low price guaranteed
PACKING LIST - One USB2.0 Microscope Digital Camera(MDC Series)
- One USB Cable
- One Calibrating Kit(Optional)
- One CD with Drivers, Software ScopePhoto, Manual, Driver, and User's Instructions
- Two Adapters
Note Sample Picture Display: (Under OLYMPUS BX61)
|
|
